Rat COL1a1 (Collagen Type I Alpha 1) ELISA Kit (AEKE04510)

(No reviews yet) Write a Review
SKU:
AEKE04510
Reactivity:
Rat
Detection Method:
Sandwich
Sensitivity:
0.17 ng/mL
Standard:
50 ng/mL
Range:
0.78-50 ng/mL
Frequently bought together:

Description

system_update_altDatasheetsystem_update_altMSDS
Product Name:Rat COL1a1 (Collagen Type I Alpha 1) ELISA Kit
SKU:AEKE04510
Size:96 Assays
Reactivity:Rat
Synonyms:COL-1A1, COL1-A1, COL1A-1, OI4, Collagen Alpha-1(I)chain
Detection Method:Sandwich
Sensitivity:0.17 ng/mL
Range:0.78-50 ng/mL
Standard:50 ng/mL
Assay Length:3.5h
Sample Type:Serum, Plasma, Tissue Homogenates And Other Biological Fluids
Kit Components:
ComponentQuantityStorage
48T96T
Pre-Coated Microplate6 strips x 8 wells12 strips x 8 wells4°C/-20°C
Standard (Lyophilized)1 vial2 vials4°C/-20°C
Biotinylated Antibody (100×)60 μL120 μL4°C/-20°C
Streptavidin-HRP (100×)60 μL120 μL4°C/-20°C
Standard / Sample Diluent Buffer10 mL20 mL4°C/-20°C
Biotinylated Antibody Diluent6 mL12 mL4°C/-20°C
HRP Diluent6 mL12 mL4°C/-20°C
Wash Buffer (25×)10 mL20 mL4°C/-20°C
TMB Substrate Solution6 mL10 mL4°C/-20°C (store in dark)
Stop Reagent3 mL6 mL4°C/-20°C
Plate Covers1 piece2 piecesRT

The test principle applied in this kit is Sandwich enzyme immunoassay. The microtiter plate provided in this kit has been pre-coated with an antibody specific to Rat COL1a1. Standards or samples are added to the appropriate microtiter plate wells then with a biotin-conjugated antibody specific to Rat COL1a1. Next, Avidin conjugated to Horseradish Peroxidase (HRP) is added to each microplate well and incubated. After TMB substrate solution is added, only those wells that contain Rat COL1a1, biotin-conjugated antibody and enzyme-conjugated Avidin will exhibit a change in color. The enzyme-substrate reaction is terminated by the addition of sulphuric acid solution and the color change is measured spectrophotometrically at a wavelength of 450nm ± 10nm. The concentration of Rat COL1a1 in the samples is then determined by comparing the OD of the samples to the standard curve.

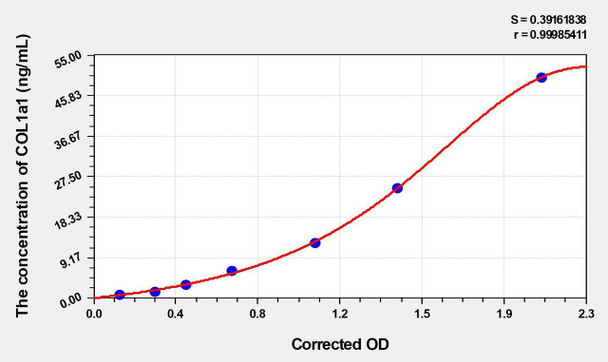

Standard Curve:
Concentration (ng/mL)ODCorrected OD
50.002.2042.101
25.001.5271.424
12.501.1421.039
6.250.7520.649
3.130.5350.432
1.570.3890.286
0.790.2250.122
0.000.1030.000
Linearity:
Matrix1:21:41:81:16
Serum (n=5)87-93%91-103%82-99%99-104%
EDTA Plasma (n=5)86-93%91-105%87-98%89-94%
Heparin Plasma (n=5)88-95%98-107%90-99%88-97%
Recovery:
MatrixRecovery rangeAverage
Serum (n=5)94-107%100%
EDTA Plasma (n=5)94-105%98%
Heparin Plasma (n=5)82-95%88%
Precision:
Intra-assay Precision (Precision within an assay)
Intra-assay Precision (Precision within an assay)：CV%<8%
Three samples of known concentration were tested twenty times on one plate to assess intra-assay precision.
Inter-assay Precision (Precision between assays)
Inter-assay Precision (Precision between assays)：CV%<10%
Three samples of known concentration were tested in forty separate assays to assess inter-assay precision.

*Note: The below protocol is a sample protocol. Protocols are specific to each batch/lot. For the correct instructions please follow the protocol included in your kit.

StepProtocol
1.After the kit is equilibrated at room temperature, add 100 µL of Standard Working Buffer (gradually diluted according to the instructions) or 100 µL of sample to each well, and incubate at 37°C for 80 minutes.
2.Discard the liquid in the plate, add 200 µL 1× Wash Buffer to each well, and wash the plate 3 times. After pat it dry against clean absorbent paper, add 100 µL Biotinylated Antibody Working Solution (1×) to each well, incubate at 37°C for 50 minutes.
3.Discard the liquid in the plate, add 200 µL 1× Wash Buffer to each well, and wash the plate 3 times. After pat it dry against clean absorbent paper, add 100 µL 1× Streptavidin-HRP Working Solution to each well, incubate at 37°C for 50 minutes.
4.Discard the liquid in the plate, add 200 µL 1× Wash Buffer to each well, and wash the plate 5 times. After pat it dry against clean absorbent paper, add 90 µL TMB Substrate Solution to each well, incubate at 37°C for 20 minutes in the dark.
5.Add 50 µL Stop Solution to each well, shake plate on a plate shaker for 1 minute to mix. Record the OD at 450 nm immediately, calculation of the results.

When carrying out an ELISA assay it is important to prepare your samples in order to achieve the best possible results. Below we have a list of procedures for the preparation of samples for different sample types.

Sample TypeProtocol
SerumSamples should be collected into a serum separator tube. After clotting for 2 hours at room temperature or overnight at 4°C, and then centrifuging at 1000 × g for 20 minutes. Assay freshly prepared serum immediately or store samples in aliquot at -20°C or -80°C for later use. Avoid repeated freeze-thaw cycles.
PlasmaCollect plasma using EDTA or heparin as an anticoagulant. Centrifuge samples at 1000 × g and 2-8°C for 15 minutes within 30 minutes of collection. Remove plasma and assay immediately or store samples in aliquot at -20°C or -80°C for later use. Avoid repeated freeze-thaw cycles.
Tissue homogenates1. Rinse the tissues in pre-cooled PBS to completely remove excess blood, and weigh them before homogenization.
2. Mince the tissues and homogenize in fresh lysis buffer (PBS for most tissues). Use a glass homogenizer on ice.
3. Ultrasound the suspension until the solution is clear.
4. Centrifuge for 5 minutes at 10000 × g, collect the supernatant and assay immediately or store at ≤ -20°C.
Cell lysates1. Wash adherent cells with PBS, detach with trypsin, and centrifuge at 1000 × g for 5 minutes.
2. Wash cells 3 times in PBS.
3. Resuspend cells in fresh lysis buffer at 107 cells/mL. Ultrasound if necessary.
4. Centrifuge at 1500 × g for 10 minutes at 2-8°C to remove debris. Assay immediately or store at ≤ -20°C.
UrineCollect mid-stream first urine of the day directly into a sterile container. Centrifuge to remove particulate matter. Assay immediately or aliquot and store at ≤ -20°C. Avoid repeated freeze-thaw cycles.
SalivaCollect saliva using a collection device. Centrifuge at 1000 × g for 15 minutes at 2-8°C. Remove particulates and assay immediately or aliquot and store at ≤ -20°C. Avoid repeated freeze-thaw cycles.
FecesDry feces weighing more than 50 mg were collected. Wash with PBS (w:v = 1:9). Sonicate and centrifuge at 5000 × g for 10 minutes. Collect the supernatant and assay immediately.
CSF (Cerebrospinal fluid)Remove particulates by centrifugation. Assay immediately or aliquot and store at ≤ -20°C. Avoid repeated freeze-thaw cycles.
Cell culture supernatantCentrifuge samples at 1000 × g for 20 minutes. Collect the supernatant and assay immediately or store at -20°C or -80°C. Avoid repeated freeze-thaw cycles.
Uniprot ID:P02454
